Moxa EDS-4000/G4000 Ethernet switch series


The Moxa EDS-4000/G4000 Ethernet switch series includes 68 models across 7 series with options ranging from 8 to 14 ports.

  • Supports PoE (Power over Ethernet)
  • 10/100 FE (Fast Ethernet) with up to 9 ports
  • GbE (Gigabit Ethernet) up to 12 ports and 2.5GbE up to 6 ports
  • 90 W PoE Ports up to 8 ports
  • Operating temperature: Standard models: -10°C to 60°C; Wide temperature models: -40°C to 75°C
  • Power input: Low voltage models: 12/24/48 VDC; High voltage models: 110/220 VDC/VAC

Moxa EDS-4000/G4000 Ethernet switch series

The new Moxa EDS-4000/G4000is the latest generation Ethernet switch series, enabling industrial automation & control systems to achieve Industry 4.0 connectivity with optimum security. Moxa’s layer 2 Ethernet switch secures communication between control and supervisory levels, with latest cyber security IEC 62443-4-2 certification

Futureproofing Industry 4.0 technology integration, the Moxa EDS-4000/G4000 Ethernet switch series supports high bandwidth 2.5GbE connectivity plus 802.3bt PoE to accelerate your digital transformation. Providing high performance and reliable communications, Moxa’s Ethernet switch series also features <20ms fast recovery redundancy and is designed for use in rugged industrial conditions.

The Moxa EDS-4000/G4000 Ethernet switch series has a wide power range, providing flexibility for multiple applications. With compact dimensions and DIN rail mounting, installation is fast and simple, and easy management is achieved through the intuitive WEB GUI graphical user interface.

Secure your networks

The Moxa EDS-4000/G4000 Ethernet switch series improves security and strengthens protection between field control devices and supervisory networks.

IEC 62443-4-2 certified, ensuring security by design and system futureproofing

Security features including Vulnerability Management, Secure Boot, Device Access Control, and User Authentication & Authorisation, help safeguard critical applications and block malicious activity

Maximise network performance & uptime

The Moxa EDS-4000/G4000 Ethernet switch series features high speed, reliable communications with fast recovery redundancy. High bandwidth connectivity accelerates the transition to Industry 4.0 and futureproofs system design.

Reliable network with <20ms fast recovery redundancy - or <50ms if the port link speed is 1 Gigabit or higher

2.5GbE high speed connectivity to futureproof system integration, plus 6x 2.5Gbps and trunking, enabling 5GbE redundant networks

Suitable for power-intensive applications with 90-watt 802.3bt PoE, expanding device integration capabilities

Flexible and simple integration

The Moxa EDS-4000/G4000 Ethernet switch series has a wide power range plus features to enable easy installation, designed to enhance system integration flexibility for a wide range of applications.

Modular power design with power input options including Low Power 12/24/48 VDC & High Power 110/220 VDC/VAC directly to switch so no need for power supply.

Wide range of 68 models with port options including PoE (Power over Ethernet), 10/100 FE (Fast Ethernet), and GbE (Gigabit Ethernet)

Compact dimensions reduces cabinet space requirement and improves ease of installation

Simple DIN rail mounting

45° rotatable power unit gives option of front-facing or vertical/top access to terminals, and the power unit can be removed without need to dismount the entire device

Two-sided LED indicators easily identify device status

Simple commissioning and management

All-in-one toolset for installation, operation, maintenance, and diagnostics, enabling straightforward system integration and end user management.

Single software with Moxa MXstudio including network visualisation to efficiently manage large-scale networks

Intuitive, HTML5-based graphical user interface with smart search function to optimise ease of use

Design & conformance for rugged industrial applications

The Moxa EDS-4000/G4000 Ethernet switch series is highly durable and conforms with key industrial standards.

Rugged design tested with an operating temperature ranging between -40°C and 75°C

Certified for ATEX Zone 2

Certified for NEMA TS2, EN 50121-4, IEC 61850-3/IEEE 1613, Class 1 Division 2

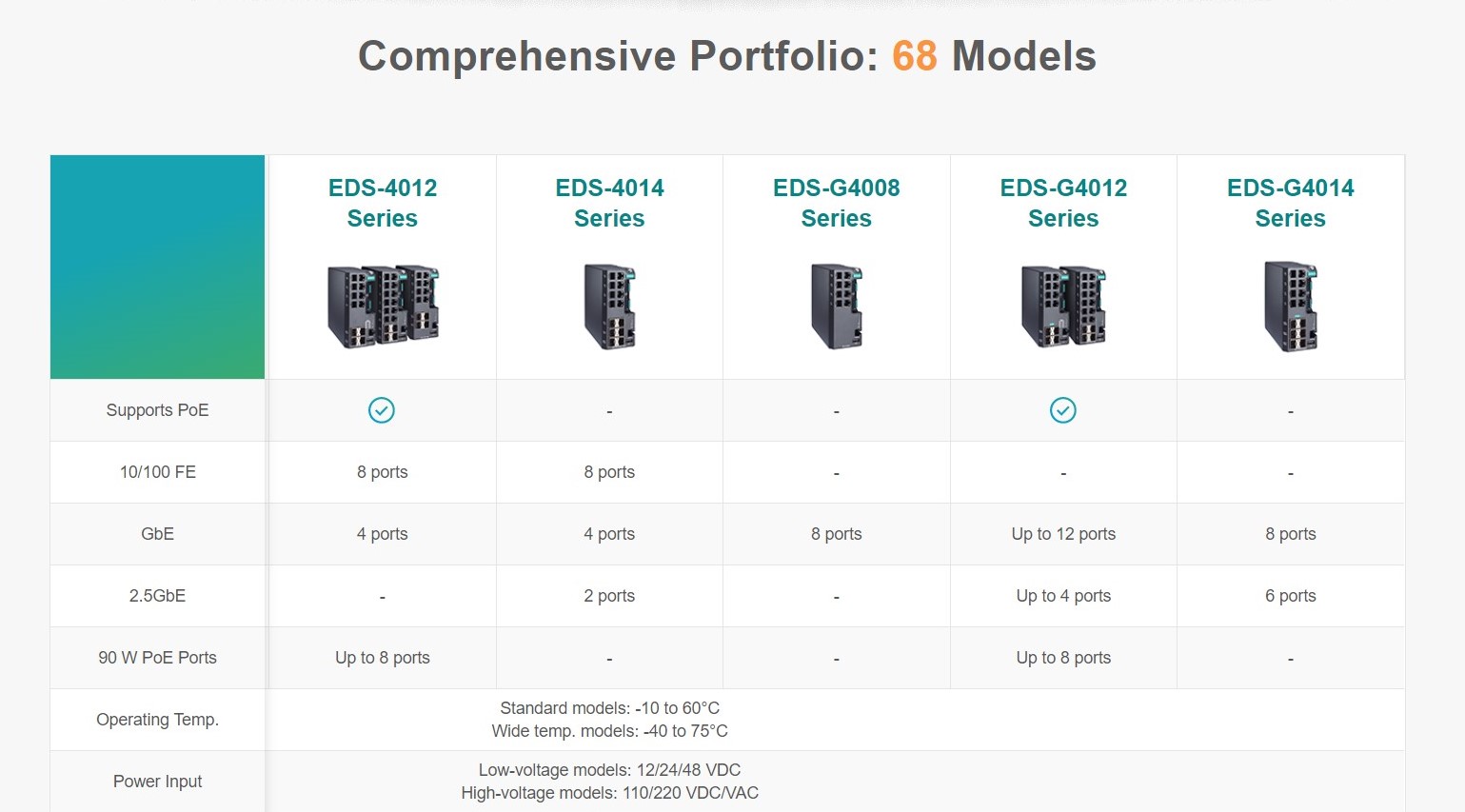

Comprehensive portfolio – 68 models

MOxa EDS-4000
