G120C Compact

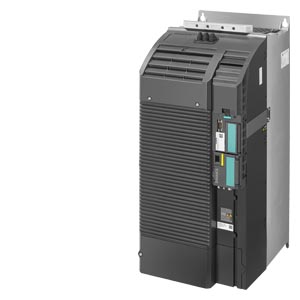

SINAMICS G120C Built-in units

The compact and versatile inverter with optimum functionalit

SINAMICS G120C is especially compact with a high power density, and offers a well-balanced combination of functions to address a wide range of applications. With its seven frame sizes, it covers a performance range of 0.55 kW to 132 kW.

Compact

• Compact even in high performance ranges up to 132 kW
• Integrated DC-line reactor and EMC filter
• Side by side installation of all frame sizes without current or performance reduction

Simple commissioning and operation

• Intuitive series commissioning, cloning function through BOP-2, IOP or SD card
• Simple and fast software parameterization

Perfect integration

• Full integration of the drives in the TIA Portal system diagnostics
• The use of the TIA Portal library concept ensures the easy reusability of the converters, including the parameter and hardware components

Leading-edge technology

• The energy-efficient, sensorless vector control allows high torques with low frequency setpoints
• Further external components are not required due to the certified safety function Safe Torque Off, which is integrated as standard.

Reliable communication

• All commonly used bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported
