Product Description

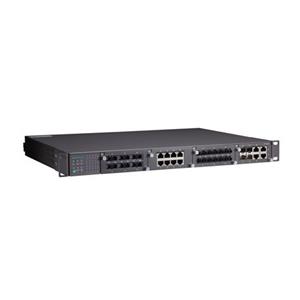

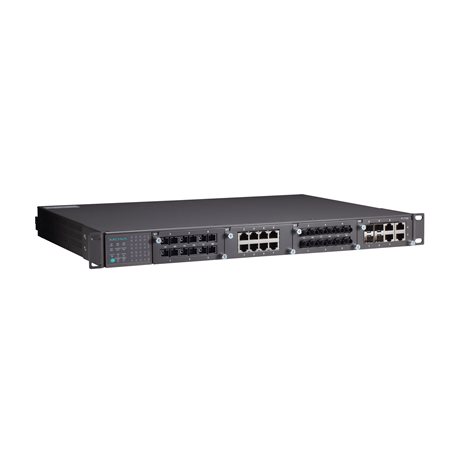

The PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4), and also features critical packet prioritization (GOOSE and SMVs) and a built-in MMS server. The PT-7728’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs.

The modular design of the PT-7728 also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.

Features and Benefits

• IEC 61850-3, IEEE 1613 (power substations), and EN 50121-4 (railway applications) compliant
• IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
• Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
• Complies with a portion of EN 50155 specifications
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• Up to 12 ports with M12 connectors
• Isolated redundant power inputs with universal 24 VDC, 48 VDC, or 110/220 VDC/VAC power supply range
• -40 to 85°C operating temperature range

Additional Features and Benefits

• Switch data modeling based on the IEC 61850-90-4 standard
• IEEE 1588v2 PTP (Precision Time Protocol) for time synchronization of networks (PTP models only)
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
• Line-swap fast recovery
• Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator

• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• Supports advanced VLAN capability with Q-in-Q tagging
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management to prevent unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email and relay output
• RMON for proactive and efficient network monitoring
• Automatic recovery of connected device’s IP addresses

Cybersecurity Features

• User passwords with multiple levels of security protect against unauthorized configuration
• SSH/HTTPS is used to encrypt passwords and data
• Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
• RADIUS/TACACS+ allows you to manage passwords from a central location

• 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
• Secure switch ports so that only specific devices and/or MAC addresses can access the ports
• Disable one or more ports to block network traffic
• SNMPv3 provides encrypted authentication and access security
